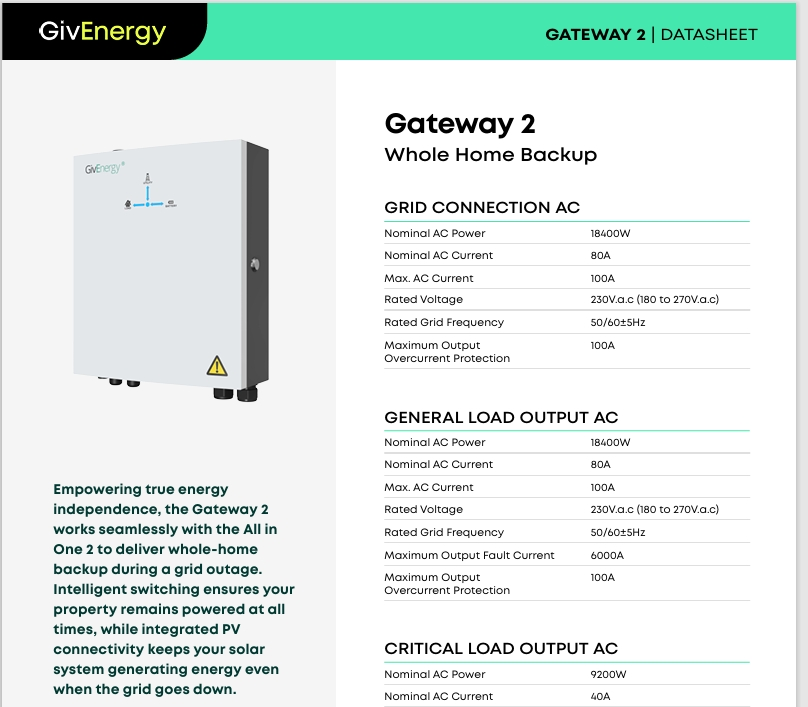

GivEnergy All in One 2 Gateway

Empowering true energy independence, the Gateway 2 works seamlessly with the All in One 2 to deliver whole-home backup during a grid outage. Intelligent switching ensures your property remains powered at all times, while integrated PV connectivity keeps your solar system generating energy even when the grid goes down.

In-Built Connection Points

Designed to work seamlessly with your clean energy ecosystem, with in-built connection points for your solar array and EV charger.

Pre-installed Energy Meter

Quicker and simpler system installation, which reduces the number of individual mounted components needed.

Instant Switchover Time

In the event of a grid failure, the system will continue to provide power into the home. This allows operation o-grid until grid supply is restored

GRID CONNECTION AC

• Nominal AC Power: 18400W
• Nominal AC Current: 80A
• Max. AC Current: 100A
• Rated Voltage: 230V.a.c (180 to 270V.a.c)
• Rated Grid Frequency: 50/60±5Hz
• Maximum Output Overcurrent Protection: 100A

GENERAL LOAD OUTPUT AC

• Nominal AC Power: 18400W
• Nominal AC Current: 80A
• Max. AC Current: 100A
• Rated Voltage: 230V.a.c (180 to 270V.a.c)
• Rated Grid Frequency: 50/60±5Hz
• Maximum Output Fault Current: 6000A
• Maximum Output Overcurrent Protection: 100A

CRITICAL LOAD OUTPUT AC

• Nominal AC Power: 9200W
• Nominal AC Current 40A
• Max. AC Current 40A
• Rated Voltage 230V.a.c (180 to 270V.a.c)
• Rated Grid Frequency: 50/60±5Hz
• Maximum Output Fault Current: 6000A
• Maximum Output Overcurrent Protection: 40A

SMART LOAD OUTPUT AC

• Nominal AC Power: 9200W
• Nominal AC Current: 40A
• Max. AC Current: 40A
• Rated Voltage: 230V.a.c (180 to 270V.a.c)
• Rated Grid Frequency: 50/60±5Hz
• Maximum Output Fault Current: 6000A

Maximum Output Overcurrent Protection: 40A
