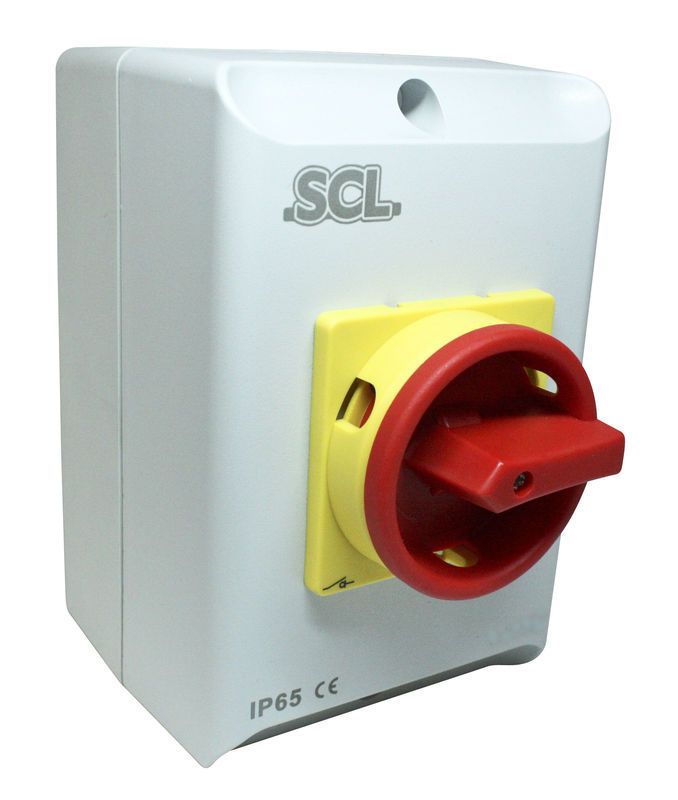

SCL 32A 4P IP65 Boxed Isolator Switch
- SCL 32A 4P IP65 ENC. ISOLATOR LARGE ENCLOSURE 175x114x135mm
- £19.54
• Insulated 4 pole AC Isolators in 32 Amp AC21
• Larger 174 x 114 x 135mm Enclosure for easier Wiring / Installation
• Weatherproof to IP65
• Easy installation
• M20/25 Knockouts up to 63A (Top & Bottom)
• Pad lockable handle in off position
• Interlocked cover, removeable in off position only
• Earth and Neutral terminals included
• Captive retained cover screws
• Conforms to IEC 60947-3
| Approvals | IEC |
|---|---|
| Dimensions (mm) | 175 x 114 x 135 |
| Colour | Grey / Red / Yellow |
| Amperage | 32 AMP |
| Poles | 4 |
| Materials (Body) | PC |
| Cable Size, Flexible (mm2) | 1.0-16.0 |
| Cable Size, Solid (mm2) | 0.75-10.0 |
| Ingress Protection | IP65 |
| Sound Output Level dB | N/A |
| Pitch | N/A |
| Materials (Terminals) | Copper |
| Contact Arrangement | 4 Normally Open |
